SLIT1 series intelligent temperature data online monitoring instrument is a practical instrument that cooperates with the American DALLAS one-line field bus technology, realizes the low-cost temperature state online monitoring scheme, and can be widely used in various applications of real-time temperature data acquisition and monitoring.
The SLIT1 series is an intelligent temperature data online monitoring instrument that works with Dallas 1‑Wire sensors and supports wired, wireless or GPRS networking. It is designed for a wide range of applications such as SMT industry monitoring, electronic equipment, cold storage, warehouses, pharmaceutical GMP, telecom rooms, power plants and process control.

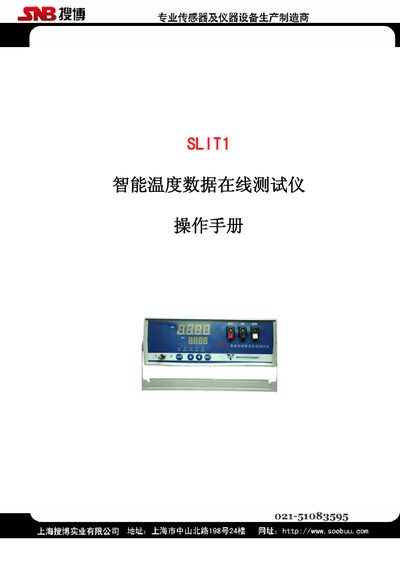

The manual covers technical parameters, typical wiring schemes, detailed interface descriptions, step‑by‑step operation procedures (including sensor registration and alarm setting), and the communication protocol for PC integration. Optional accessories and ordering information are also listed. This manual is written in Chinese.
| Temperature range | -55 °C ~ +125 °C |
|---|---|
| Resolution | 0.1 °C |
| Accuracy | ±0.5 °C |
| Measurement speed | 850 ms per point |
| Number of channels | 1‑24 (single‑bus) |
| Alarm setting | Online upper/lower limit |
| Baud rate | 19200 (customizable) |
| Communication ports | RS232 (optional CAN, RS485) |
| Power supply | DC 5 V 2 A |
| Weight | 500 g |
| Storage temperature range | -40 °C ~ +85 °C |
| Operating temperature range | -40 °C ~ +85 °C |
| Maximum sensor cable length | ≤200 m |
| Dimensions | 200 mm × 70 mm × 175 mm |
The device uses a default baud rate of 19200 bps.
Yes, it requires a DC 5 V, 2 A power input; the supplied power adapter meets this specification.
