RS-25 series is a high-performance, small-sized, high-power density, long-life, and highly reliable 25W internal housing single-output switching power supply launched by Meanwell. The product meets EMS EN50082-2/EN61000-6-2 heavy industrial standard, can withstand 5 seconds of 300VAC high-voltage input shock, working environment temperature up to 70℃, and can withstand 5G vibration. 100% full load aging test, can be used in various extreme applications.

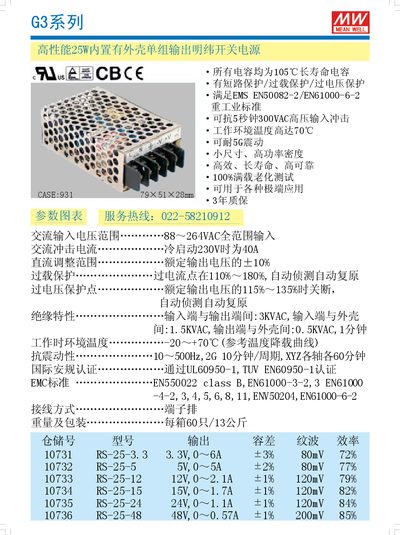

The G3 series switching power supplies from Mean Well are compact, high‑power‑density units with 25 W output and built‑in single‑group output. They feature 105 °C long‑life capacitors, short‑circuit, overload and over‑voltage protection, and meet heavy‑industry EMC standards.
Key specifications include an input voltage range of 88‑264 VAC, surge current up to 40 A on cold start, output voltages from 3.3 V to 48 V with corresponding current limits, efficiency up to 85 %, and robust insulation and vibration resistance. The units are UL60950‑1 and TUV EN60950‑1 certified and are supplied in boxes of 60 units (13 kg). This manual is written in Chinese.
| Input voltage range | 88‑264 VAC |
|---|---|
| Cold‑start surge current | 40 A |
| DC adjustment range | ±10 % of rated output voltage |
| Overload protection point | 110 %‑180 % (auto‑reset) |
| Overvoltage protection point | 115 %‑135 % of rated output voltage (auto‑reset) |
| Insulation (input‑output) | 3 kVAC |
| Operating temperature range | -20 °C to +70 °C |
| Vibration resistance | 10‑500 Hz, 2 G 10 min/cycle, XYZ each axis 60 min |
| Certifications | UL60950‑1, TUV EN60950‑1, EN550022 class B, EN61000‑3‑2, EN61000‑4‑2, etc. |
| Connection type | Terminal block |
| Packaging | 60 units per box, 13 kg |
| Case dimensions | 931 × 79 × 51 × 28 mm |
| Efficiency (typical) | 72 %‑85 % |
| Output voltage options | 3.3 V, 5 V, 12 V, 15 V, 24 V, 48 V |
| Output current ranges | 0‑6 A (3.3 V), 0‑5 A (5 V), 0‑2.1 A (12 V), 0‑1.7 A (15 V), 0‑1.1 A (24 V), 0‑0.57 A (48 V) |
The input voltage range is 88 VAC to 264 VAC for full‑range operation.
It includes short‑circuit, overload (110 %‑180 % auto‑reset), and over‑voltage (115 %‑135 % auto‑reset) protection.
It is certified to UL60950‑1, TUV EN60950‑1 and complies with EN550022 class B, EN61000‑3‑2, EN61000‑4‑2 and related EMC standards.
