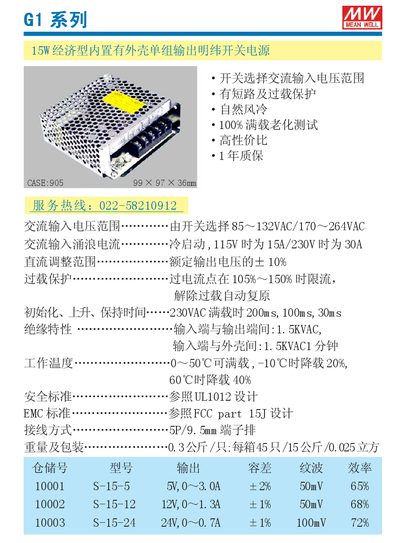

The Mean Well G1 series 15W economic type integrated shell single output switch power supply has the following main features: switch selectable AC input voltage range, short circuit and overload protection, natural cooling, 100% full load aging test, high cost performance, and 1 year warranty.
The G1 series is a 15 W multi‑output switch power supply designed for indoor installation. It accepts an AC input of 85‑132 VAC (or 170‑264 VAC) and delivers selectable output voltages such as 115 V 15 A or 230 V 30 A with a tolerance of ±10 %.
The unit complies with UL1012 and FCC Part 15J safety standards, operates within a temperature range of 0‑50 °C at full load (with reduced load limits at –10 °C and 60 °C), and is packaged in a 90 × 97 × 36 mm case weighing about 0.3 kg per box. This manual is written in Japanese.
| Power rating | 15 W |
|---|---|
| Input voltage range | 85‑132 VAC / 170‑264 VAC |
| Output voltage / current | 115 V 15 A / 230 V 30 A |
| Output tolerance | ±10 % |
| Case dimensions | 90 mm × 97 mm × 36 mm |
| Weight per box | 0.3 kg |
| Operating temperature (full load) | 0‑50 °C |
| Safety standards | UL1012, FCC Part 15J |
The MW G1 accepts an AC input of 85‑132 VAC (or 170‑264 VAC).
The unit measures approximately 90 mm × 97 mm × 36 mm (CASE:905).
It complies with UL1012 and FCC Part 15J safety standards.
The supply can deliver 115 V at 15 A or 230 V at 30 A.
