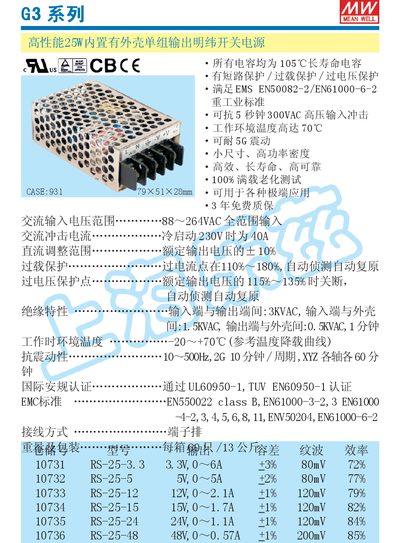

MINGWEI G3 Switch Power Supply Manual
This manual describes the MINGWEI G3 series 25 W built‑in switch power supply. It includes safety information, compliance with international standards such as UL60950‑1 and EN550022 class B, and outlines the device's protection features.
The document lists electrical characteristics, including an input voltage range of 88‑264 VAC, selectable output voltages (3.3 V, 5 V, 12 V, 15 V, 24 V, 48 V) with corresponding current limits and efficiencies, and an operating temperature range of –20 °C to +70 °C. This manual is written in Japanese.
MW G3 series specifications
| Input Voltage | 88‑264 VAC |
|---|---|
| Output Power | 25 W |
| Output Voltage – 3.3 V | 3.3 V, 0‑6 A, 72 % efficiency |
| Output Voltage – 5 V | 5 V, 0‑5 A, 77 % efficiency |
| Output Voltage – 12 V | 12 V, 0‑2.1 A, 79 % efficiency |
| Output Voltage – 48 V | 48 V, 0‑0.57 A, 85 % efficiency |
| Operating Temperature | -20 °C to +70 °C |
| Safety Standards | UL60950‑1, EN60950‑1, EN550022 class B |
