This document introduces the features and characteristics of the G3 series power supplies, including long life capacitors, short circuit protection, overload protection, overvoltage protection, etc. The power supplies meet the heavy industry standards and have features such as high voltage withstand shock, high temperature working environment, and vibration resistance. They also have advantages of small size, high power density, high efficiency, long life, and high reliability.

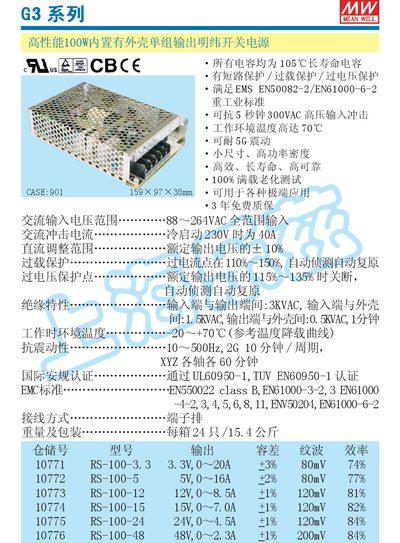

This manual provides the essential information for the G3 series 100W built‑in switch power supply. It describes the product’s key features such as short‑circuit protection, overload protection, and compliance with EMC standards (EN50082‑2, EN61000‑6‑2). The document also lists the input voltage range, temperature limits, and certification details.
Technical data for each output module (RS‑100‑3.3, RS‑100‑5, RS‑100‑12, RS‑100‑15, RS‑100‑24, RS‑100‑48) are included, specifying voltage, current, tolerance, and ripple. Packaging, weight, and environmental operating conditions are also provided. This manual is written in Japanese.
| RS-100-3.3 Output | 3.3 V, 0‑20 A, +3 % tolerance |
|---|---|
| RS-100-5 Output | 5 V, 0‑16 A, +2 % tolerance |
| RS-100-12 Output | 12 V, 0‑8.5 A, ±1 % tolerance |
| RS-100-15 Output | 15 V, 0‑7.0 A, +1 % tolerance |
| RS-100-24 Output | 24 V, 0‑4.5 A, +1 % tolerance |
| RS-100-48 Output | 48 V, 0‑2.3 A, +1 % tolerance |
| Input Voltage Range | 88 VAC – 264 VAC |
| Operating Temperature Range | –20 °C to 170 °C |
