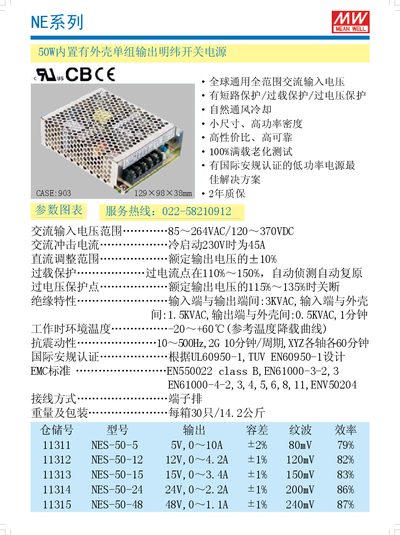

NE series 50W internal shell single group output Mean Well switch power supply, with global universal full range AC input voltage, short circuit protection / overload protection / overvoltage protection, natural air cooling, small size, high power density, high cost performance, high reliability, 100% full load aging test, with international safety certification of the best solution for low power power supply
The NES-50 series is a compact, high‑power‑density switch‑mode power supply offering output voltages from 5 V to 48 V with low ripple. It is designed for applications requiring reliable, efficient power conversion and includes protection features such as short‑circuit and overload protection.
The device complies with international safety and EMC standards (UL60950‑1, EN60950‑1, EN55022, EN61000‑3‑2, EN61000‑4‑2) and operates in an ambient temperature range of –20 °C to +60 °C. Input voltage is 85‑264 VAC or 120‑370 VDC, and the unit is supplied in a compact 903 mm × 129 mm × 98 mm package with a two‑year warranty. This manual is written in Chinese.
| Output Voltage (NES‑50‑5) | 5 V |
|---|---|
| Output Current (NES‑50‑5) | 0‑10 A |
| Output Voltage (NES‑50‑12) | 12 V |
| Output Current (NES‑50‑12) | 0‑4.2 A |
| Input Voltage Range | 85‑264 VAC / 120‑370 VDC |
| Operating Temperature | -20 °C to +60 °C |
The unit accepts an input voltage of 85‑264 VAC or 120‑370 VDC.
The power supply can operate from –20 °C up to +60 °C.
It provides a 5 V output at up to 10 A.
