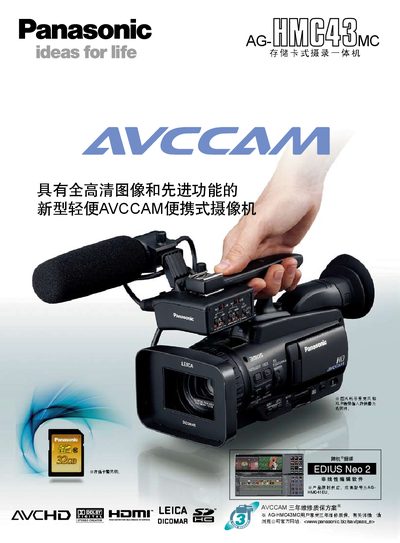

AG-HMC43MC is a new generation of compact AVCCAM camcorder with advanced features, full HD image and excellent picture quality. It is an ideal choice for recording various events with its small and light body and easy operation.
This manual covers the features and operation of the Panasonic AG-HMC43MC portable camcorder, including its 3‑MOS sensor, Leica Dicomar lens with 12× optical zoom, optical image stabilization, and a 2.7‑inch touchscreen LCD. It explains recording modes such as PH, HA, HG and HE, storage options with SD/SDHC cards, and connectivity via HDMI, USB, XLR and audio outputs.
Additional sections describe power and battery management, optional accessories like XLR adapters and remote controls, warranty information, and software tools for transferring and editing footage on Windows or Mac computers. This manual is written in Chinese.
| Image Sensor | 3MOS 1/4.1" progressive |
|---|---|
| Effective Pixels | ≈3.05 million per sensor (total ≈9.15 million) |
| Digital Zoom | 2×, 5×, 10× |
| LCD Display | 2.7‑inch widescreen touchscreen, ~230,000 pixels |
| Recording Format | AVCHD (MPEG‑4 AVC/H.264) |
| Compression Method | MPEG‑4A VC/H.264 |
| Power Supply | DC 7.2 V (battery) / 7.3 V (AC adapter) |
| Battery | 7.2 V 1,320 mAh (standard), optional 2,640 mAh |
| Weight | ≈0.98 kg (camera only) |
| Dimensions (W×H×D) | 136 × 135 × 304 mm |
| HDMI Output | 1 × HDMI (A‑type) |
In PH mode the camcorder can record up to about 720 minutes (12 hours) on a single SDHC card.
When the camcorder is in standby, pressing the REC button captures the three seconds of video and audio that occurred just before the button press.
