The specifications of TC-32LX1D TC-26LX1D LCD TV, including power, power consumption, liquid crystal display, sound, receiving system, receiving channel, working conditions, connection terminals, size, weight, etc.

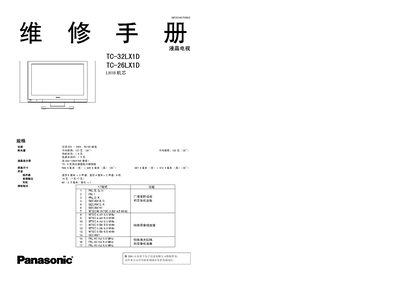

This service manual provides detailed technical data, safety precautions, and step‑by‑step repair instructions for the Panasonic TC‑32LX1D and TC‑26LX1D liquid‑crystal televisions. It covers power requirements, dimensions, speaker output, and component locations, as well as ESD protection and self‑test functions.
The document includes circuit‑board layouts, wiring diagrams, option code settings, and adjustment methods for video signal levels and white‑balance. Technicians can use the information to safely disassemble the units, replace faulty parts, and re‑calibrate the display after repairs. This manual is written in Chinese.
| Power supply voltage | 220‑240 V AC, 50/60 Hz |
|---|---|
| Average power consumption (26") | 127 W |
| Average power consumption (32") | 160 W |
| Standby power | 1.8 W |
| Power off consumption | 1.5 W |
| Screen size (26") | 566.4 mm × 339.8 mm |
| Screen size (32") | 687.4 mm × 412.4 mm |
| Speaker output | 14 W (7 W + 7 W) |
| Net weight (26") | 23 kg |
| Net weight (32") | 27 kg |
| Overall dimensions (26") | 844 mm × 571.8 mm × 321 mm |
| Overall dimensions (32") | 1,000 mm × 651.7 mm × 321 mm |
Press the timer‑off key on the remote together with the volume‑down (‑/V) key on the TV; the screen will display a dash indicating self‑test mode.
