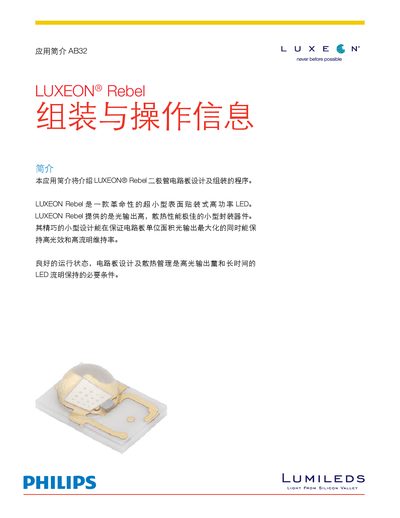

This application note introduces the process of circuit board design and assembly for LUXEON Rebel diodes. LUXEON Rebel is a revolutionary, ultra-small surface mount high power LED. LUXEON Rebel delivers high output light with excellent heat dissipation from a small form factor. Its compact design maximizes light output per unit area on the circuit board while maintaining high efficacy and high lumen maintenance. Proper operating conditions, circuit board design, and heat management are essential to high light output and long term LED lumen maintenance.
The LUXEON Rebel is a revolutionary ultra‑small surface‑mount high‑power LED that delivers high luminous output with excellent thermal performance. Its compact package enables maximum light output per board area while maintaining high luminous efficacy.
This document describes safe handling procedures, cleaning methods, optical‑center positioning, recommended PCB substrates (FR4 or MCPCB), material properties, thermal‑management design, and JEDEC humidity‑sensitivity classification for the LUXEON Rebel LED. This manual is written in Chinese.
| Maximum handling force | 3 N (300 g) |
|---|---|
| Optical center offset from front surface | 1.525 mm |
| Reference point distance (F2 to center) | 2.248 mm |
| Optical center tolerance radius | 0.35 mm |
| JEDEC humidity sensitivity level | Level 1 (highest) |
Do not apply more than 3 N (300 g) of force to the LED during handling.
It is classified as JEDEC humidity sensitivity level 1, the highest level.
