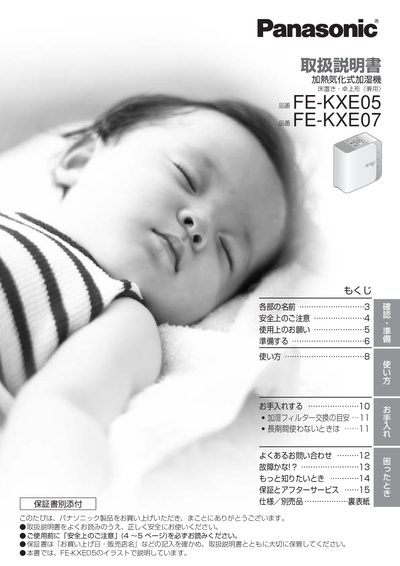

This is a user manual for a heated evaporative humidifier. It mainly introduces the various parts of the humidifier, safety precautions, preparation work, usage methods, cleaning and maintenance.
This manual begins with safety precautions and usage requests, explaining how to avoid fire, electric shock, and injury while operating the humidifier. It then guides you through preparation, tank filling, and proper installation before describing the control panel functions, operation modes, and child‑lock features.
Later sections cover routine maintenance such as filter replacement, water type recommendations, and troubleshooting common issues. The document ends with warranty information, service contacts, and a list of optional accessories and specifications for both FE‑KXE05 and FE‑KXE07 models. This manual is written in Japanese.
| Input Voltage | AC 100 V 50/60 Hz |
|---|---|
| Power Consumption (Powerful mode) | 180 W (FE‑KXE05) / 175 W (FE‑KXE07) |
| Power Consumption (Eco mode) | 51 W (FE‑KXE05) / 46 W (FE‑KXE07) |
| Humidification Rate (Powerful mode) | 500 mL/h (FE‑KXE05) / 480 mL/h (FE‑KXE07) |
| Humidification Rate (Eco mode) | 400 mL/h (FE‑KXE05) / 380 mL/h (FE‑KXE07) |
| Tank Capacity | ≈ 4.0 L (FE‑KXE05) / ≈ 4.5 L (FE‑KXE07) |
| Dimensions (W×D×H) | 370 mm × 370 mm × 180 mm (FE‑KXE05) / 370 mm × 370 mm × 207 mm (FE‑KXE07) |
| Weight | ≈ 5.3 kg (FE‑KXE05) / ≈ 5.5 kg (FE‑KXE07) |
The humidification filter should be replaced roughly every 10 years when the unit runs 8 hours per day.
Add water to the tank and press the power button (運転 切/入) to resume operation.
