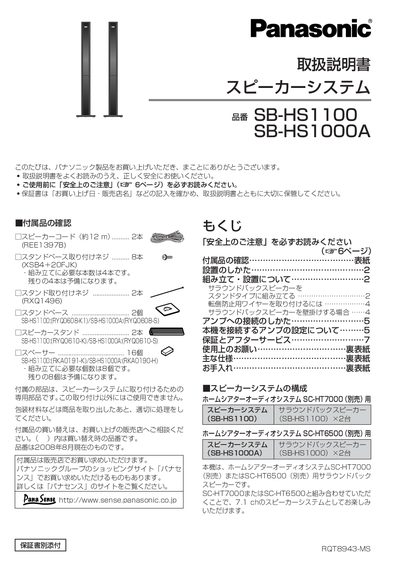

This document describes the assembly and usage methods of Panasonic's SB-HS1000A and SB-HS1100 speaker systems and related accessories. They are surround back speakers for the SC-HT7000 and SC-HT6500 home theater audio systems, providing a 7.1 channel sound experience.
This manual explains how to safely assemble and install the SB‑HS1100/SB‑HS1000A speaker system. It includes safety warnings such as avoiding direct sunlight, high humidity, strong vibrations and magnetic fields that could affect nearby cards or devices.
It also covers the connection of the speaker cables to a compatible amplifier (impedance 6 Ω, rated input 100 W), wiring diagrams, amplifier setting instructions, and detailed product specifications. This manual is written in Japanese.
| Rated Input Power | 100 W (定格) |
|---|---|
| Maximum Input Power | 100 W (最大) |
| Output SPL | 82.5 dB/W (1 m) |
| Crossover Frequency | 0.5 kHz |
| Frequency Range | 65 Hz – 50 kHz (‑16 dB) |
| Dimensions (stand) | 79 mm × 1422 mm × 79 mm |
| Weight (stand) | ≈ 9.8 kg |
Avoid placing the speakers in direct sunlight, high‑temperature areas, locations with strong vibration or humidity, and keep them away from magnetic sources that could affect credit cards or other devices.
The speakers require an amplifier with an impedance of 6 Ω and a rated input power of 100 W (or less).
