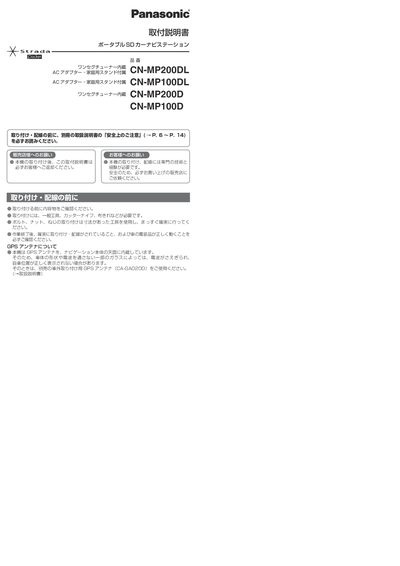

This document is an installation and wiring manual for a car navigation system. It provides safety precautions and instructions, along with a list of accessories and safety standards.
This manual provides safety instructions and preparation steps for installing Panasonic's portable SD car navigation stations. It emphasizes reading the separate safety notice, using proper tools, and confirming that all components are present before beginning installation.
Detailed installation procedures cover mounting the stand on the dashboard, adjusting the angle, connecting the power and side‑brake cables, and installing the optional FM‑VICS antenna. The guide also includes wiring tips, fuse information, and checks to ensure stable operation after installation. This manual is written in Japanese.
| Power supply voltage | 24 V |
|---|---|
| External GPS antenna part number | CA‑GAO02OD |
| FM‑VICS antenna length | 1.8 m |
Use the optional external GPS antenna, part number CA‑GAO02OD, and install it as described.
