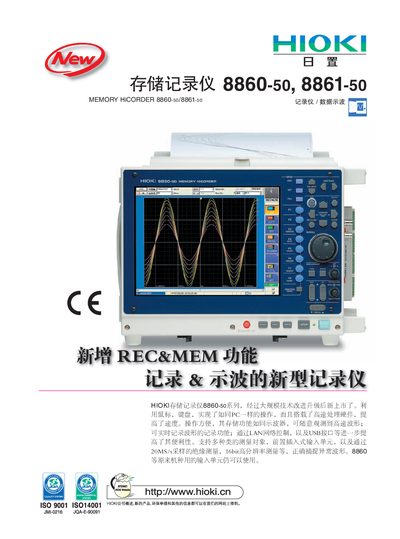

8860-50/8861-50 series storage recorders are products with high-speed sampling, isolated inputs, HDD real-time storage, and multi-channel recording. They can be used to analyze the operation of power control systems such as inverters, and simultaneously split-screen view historical carrier waves and basic waveforms.
The HIOKI 8860-50 and 8861-50 storage recorders provide high‑speed waveform capture with up to 20 MS/s sampling, dual‑channel REC&MEM recording, USB 2.0 and LAN connectivity, and support for up to 128 low‑speed channels. New functions such as REC&MEM enable simultaneous recording and memory storage, while the LCD panel offers an improved viewing angle.
The devices also include FFT analysis, multi‑channel operation, and various input modules for high‑voltage and differential measurements. Detailed specifications, connection options, and usage instructions are provided throughout the manual. This manual is written in Chinese.
| Maximum sampling rate | 20 MS/s |
|---|---|
| Maximum high‑speed channels | 32 |
| Maximum low‑speed channels | 128 |
| USB interface | USB 2.0 |
The recorder can sample at up to 20 MS/s.
Yes, the recorder includes FFT analysis functions for both single‑channel and multi‑channel data.
