This document introduces the parameters and functions of a resistance, voltage, and temperature measuring instrument. The instrument features AC 4-terminal resistance measurement, LCD display, and automatic shutdown.

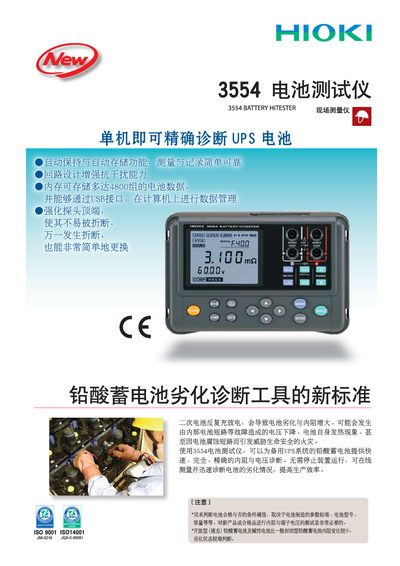

The HIOKI 3554 Battery Tester is designed for on‑site diagnosis of UPS lead‑acid batteries. It measures internal resistance and voltage without stopping the UPS, stores up to 4,800 data groups, and offers automatic hold and record functions for reliable monitoring.
The manual explains how to connect the device, use the USB interface with the supplied Windows software to transfer and manage data, replace probe tips, and configure measurement ranges, limits, and safety features. Technical specifications, accessories, and compliance information are also included. This manual is written in Chinese.
| Resistance measurement range | 0.00 Ω – 3.100 Ω |
|---|---|
| Maximum terminal‑to‑terminal input voltage | 60 V DC |
| Maximum terminal‑to‑ground input voltage | 70 V DC |
| Data storage capacity | 4,800 data groups |
| Power supply | 8 × AA (LR6) alkaline batteries |
| Dimensions & weight | 192 × 121 × 55 mm, 790 g |
| Temperature coefficient (resistance) | 0.005 %/°C |
The device can store up to 4,800 groups of measurement data in its internal memory.
The maximum terminal‑to‑terminal input voltage is 60 V DC, and terminal‑to‑ground is 70 V DC.
Data can be transferred via the USB interface using the supplied Windows software, which allows easy management and export of stored measurements.
The tester is powered by eight AA (LR6) alkaline batteries.
