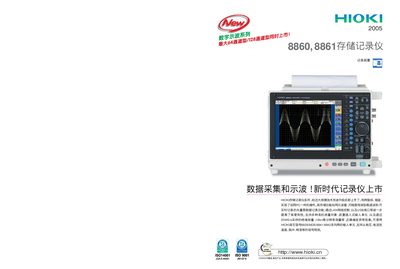

This document introduces the features and functions of the HIOKI 2005 8860 and 8861 storage recorders. The recorder offers the convenience of PC-like operation, real-time recording of vector graph data, observation of high-speed waveforms, and support for various measurement objects. It also features plug-in input units, high-resolution measurements, and external storage.
The Hioki 8860 and 8861 are high‑speed storage recorders designed for data acquisition and analysis. They feature PC‑like operation with mouse and keyboard control, LAN and USB connectivity, and support a wide range of measurement inputs including voltage, current, temperature, and strain.
The devices offer flexible input modules, large internal memory (up to 4 GB) with optional expansion boards, real‑time and high‑speed recording, FFT analysis, and built‑in printing options. They are powered by AC 100‑240 V and include a 10.4‑inch TFT color display for easy waveform visualization. This manual is written in Chinese.
| Maximum sampling rate | 20 MS/s (full channel) |
|---|---|
| Power supply | AC 100‑240 V, 50/60 Hz |
| Display | 10.4‑inch TFT color LCD, 800×600 |
| Internal memory capacity | Up to 4 GB flash (FAT32) |
The recorder can sample at up to 20 MS/s per channel when all channels are used simultaneously.
Insertable input units are supported, offering up to 16 channels for voltage, current, temperature, strain, and other signals.
The device operates from AC 100 V to 240 V at 50 Hz or 60 Hz.
It includes up to 4 GB of internal flash memory, with optional expansion boards for larger capacities.
