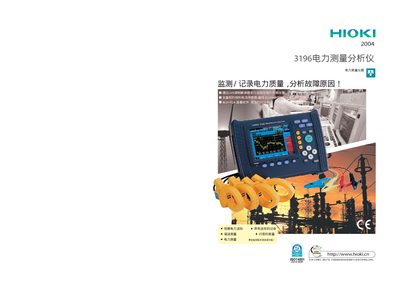

This document introduces the power measurement instruments from HI OKI company, including the 2004 3196 power measurement analyzer and other related products. The instrument has remote control and data collection capabilities, a full range of clamp current sensors, and flexible PC analysis software. It can be used for monitoring and recording power quality, analyzing the causes of faults, and observing power waveforms, recording abnormal waveforms, measuring harmonics and flicker, etc. The instrument can accurately capture various power abnormalities and provide solutions.
The HIOKI 3196 is a power quality analyzer that can measure a wide range of electrical parameters, including current, voltage, power, harmonics and event data. It supports single‑phase, three‑phase and four‑wire configurations and offers optional current sensors for up to 5000 A.
The unit includes a 64‑inch TFT color LCD, internal memory, and communication options such as RS‑232C, LAN and an HTTP server for remote monitoring and data download. Safety and environmental specifications meet IEC standards. This manual is written in Chinese.
| Current measurement range | 500 mA to 9007 A |
|---|---|
| Dimensions | 119 mm × 77 mm × 174 mm |
| Weight | 2.25 kg |
| Display | 64" TFT color LCD, 640 × 480 dots |
| Measurement accuracy (current) | ±0.39 % rdg + 0.02 % fs |
It can measure currents from 500 mA up to 9007 A.
