MEMORY HiCORDER 8860-50/8861-50 is a high-performance data recorder that supports mouse and keyboard operations and is equipped with high-speed processing hardware to improve speed. It supports a wide variety of measurement objects, front-inserted input units, and 20MS/S sampling insulation measurements, 16-bit high-resolution measurements, etc., to correctly capture abnormal phenomena.

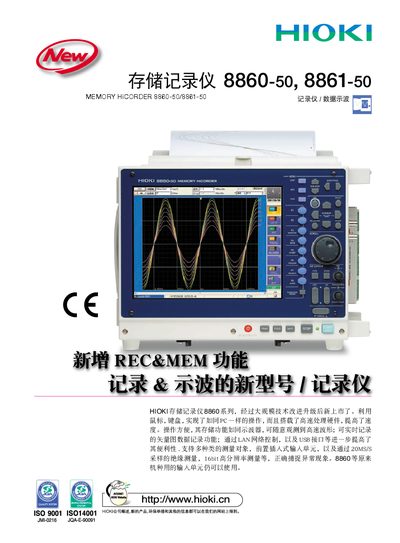

The HIOKI 8860‑50 and 8861‑50 storage recorders combine oscilloscope and data‑logging functions with up to 20 MS/s sampling, 128 channels and large internal HDD storage. The device can be operated with mouse and keyboard, supports LAN and USB connectivity, and offers the REC&MEM feature for simultaneous low‑speed recording and high‑speed capture of abnormal waveforms.
The manual covers hardware specifications, input modules, trigger settings, display options, remote control via a web browser, and optional measurement units such as high‑resolution, high‑voltage and strain‑gauge modules. It also provides guidance on data saving, FFT analysis, and troubleshooting. This manual is written in Japanese.
| Maximum sampling speed | 20 MS/s |
|---|---|
| Maximum number of channels | 128 channels |
| Memory capacity | 32 M to 1 G |
| Maximum isolated input voltage | 300 V AC/DC |
REC&MEM allows low‑speed recording while simultaneously capturing high‑speed abnormal waveforms.
It can be accessed over LAN or USB using a web browser to open shared folders and control the device.
The 8861‑50 model supports up to 128 channels.
The recorder can sample at up to 20 MS/s.
