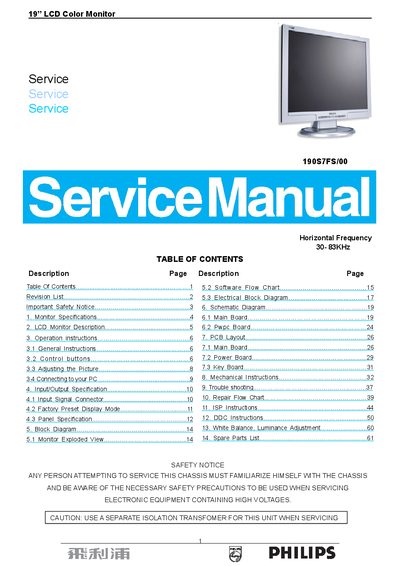

This is a maintenance manual for 19” LCD Color Monitor 190S7FS/00 model monitor. It mainly includes display specifications, structure, operation instructions, connection guide, troubleshooting and so on.
This service manual provides detailed information for the Philips 190S7FS 19" LCD color monitor. It includes monitor specifications, LCD description, operation instructions, input/output details, block diagrams, schematic diagrams, PCB layouts, mechanical instructions, and a comprehensive parts list.
Safety notices, troubleshooting procedures, repair flow charts, ISP and DDC instructions, as well as white‑balance and luminance adjustment guidelines are also included to assist service technicians in maintaining and repairing the unit safely.
| Screen type | Active matrix - TFT LCD |
|---|---|
| Panel type | LM190E03 (LPL) |
| LCD panel size | 19.0" (481 mm) |
| Pixel pitch | 0.294 mm (H) × 0.294 mm (V) |
| Viewable angle | Horizontal 140°, Vertical 130° |
| Response time | 8 ms |
| Power consumption (on) | < 34 W |
| Power consumption (off) | < 1 W |
| Input connectors | D‑Sub 15‑pin, D‑VI‑D 24‑pin |
| Tilt range | -5° ~ 25° |
| Operating temperature | 5 °C to 40 °C |
| Weight (net) | 5.7 kg |
Use a separate isolation transformer and follow all cautions and warnings listed in the safety notice.
Press the (ox) button to open the On‑Screen Display (OSD) menu and use the arrow keys to adjust settings such as brightness, contrast, and geometry.
The spare parts list is provided in section 14 of the manual.
