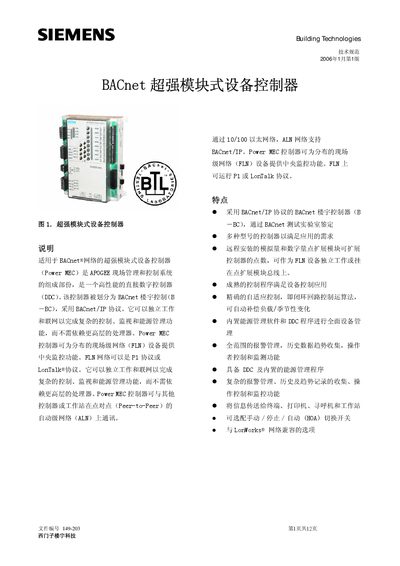

This document introduces Siemens Building Technologies' BACnet Power MEC, a powerful modular device controller. The controller uses the BACnet/IP protocol and can work independently or be networked to perform complex control, monitoring, and energy management functions. It supports communication with FLN and ALN networks and includes features such as alarm management, historical data recording, and operator control.
This manual describes the Siemens Power MEC (BACnet Super Module) controller, a high‑performance direct digital controller for building automation. It explains the hardware architecture, supported network protocols (BACnet/IP, LonWorks, P1), and the flexible I/O expansion options.
The document includes wiring diagrams, RS‑232 communication setup, power supply options, and detailed specifications such as processor speed, memory size, and environmental ratings, helping installers and technicians configure and maintain the system. This manual is written in Chinese.
| Processor clock frequency | 48 MHz |
|---|---|
| Memory capacity | 64 MB RAM / 8 MB FLASH (total 72 MB) |
| Ethernet ALN communication | 10/100 BASE‑T |
| Power supply (115 V box) | 115 Vac ±15 % @ 60 Hz |
Yes, up to eight analog or digital expansion modules can be added, extending I/O points as needed.
