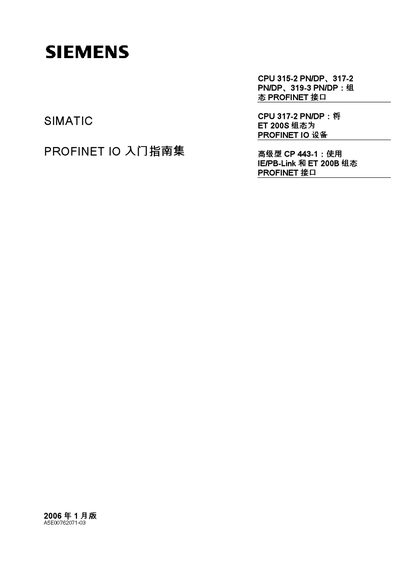

Siemens SIMATIC PROFINET CPU 315-2 PN/DP, 317-2 PN/DP, 319-3 PN/DP Installation Guide

Step‑by‑step guide for configuring the PROFINET interface of Siemens SIMATIC CPUs 315‑2, 317‑2 and 319‑3 PN/DP.

Brand: Siemens
Document type: Installation Guide
Language: Chinese
Pages: 64
File format: PDF
File size: 1.8 MB
Published: 27 September, 2011
Updated: 29 September, 2026
Model: 315-2 PN/DP, 317-2 PN/DP, 319-3 PN/DP
MD5 checksum: 2CE7688D7FE81758A9EBEBB1F4F589D9
PDF: Siemens SIMATIC PROFINET CPU 315-2 PN/DP, 317-2 PN/DP, 319-3 PN/DP Installation Guide PDF

About this manual

This guide introduces the basic concepts and procedures for setting up the PROFINET interface on Siemens SIMATIC CPUs 315‑2 PN/DP, 317‑2 PN/DP and 319‑3 PN/DP. It covers required tools, hardware preparation, wiring, IP address assignment, and hardware configuration in STEP 7.

Safety warnings, required software (STEP 7 V5.3), and detailed troubleshooting information are also provided, along with references to related manuals and online support resources. This manual is written in Chinese.

What's inside

Introduction
Safety Instructions
Preparation
Hardware Installation
IP Address Assignment
STEP 7 Configuration
Debugging and Troubleshooting
Additional Information

Specifications

CPU 315-2 PN/DP order number	6ES7315-2EG10-0AB0
Required Ethernet cable	Cat5 industrial Ethernet cable with RJ45 connector

Frequently asked questions

What safety symbols are used in the guide?

A warning triangle indicates personal‑safety warnings, while symbols without the triangle indicate property‑damage warnings.

Which CPU models are covered by this guide?

The guide covers SIMATIC PROFINET CPUs 315‑2 PN/DP, 317‑2 PN/DP and 319‑3 PN/DP.

What software is required for configuring the CPUs?

STEP 7 V5.3 with firmware version 5.3 SP1 is required for hardware configuration and IP address assignment.
