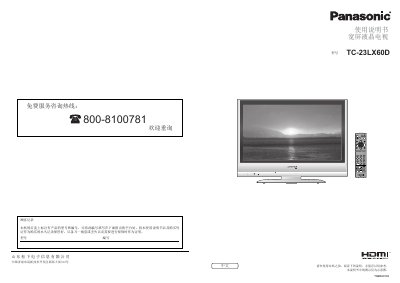

Panasonic TC-23LX60D LCD TV user manual, mainly introduces the product's safety precautions, maintenance methods, basic functions, advanced functions, FAQs and other content.
The Panasonic TC-23LX60D is a 23‑inch widescreen LCD television designed for home entertainment. This user manual guides owners through safe installation, initial configuration, and everyday use of the TV.
Key sections cover safety precautions, mounting and maintenance, initial setup and auto‑tuning, detailed menu functions, external device connections, technical specifications, and a comprehensive FAQ for common issues. This manual is written in Chinese.
| Power consumption (average) | 102 W |
|---|---|
| Standby power consumption | 0.9 W |
| Screen size | 58.3 cm (23 inches) |
| Resolution | 1366 × 768 (1,049,088 pixels) |
| Aspect ratio | 16:9 |
| Speakers | 2 × 12 cm × 6 cm, 8 Ω |
| Audio output power | 5 W (2.5 W + 2.5 W), 7 % THD |
| Dimensions (W × H × D) | 565 mm × 453 mm × 260 mm |
| Net weight | 10.0 kg |
| Power supply | AC 220 V, 50 Hz |
Keep the TV away from water, do not place liquids near it, ensure proper ventilation, use authorized brackets, and have a qualified technician perform the installation.
Select the Auto Tuning option in the Tuning menu; the TV will scan and store available channels for your region.
In the Settings menu set “Use HDMI Control” to ON; compatible Panasonic devices will then power on/off together with the TV.
The TV consumes about 102 W during normal operation and 0.9 W in standby mode.
