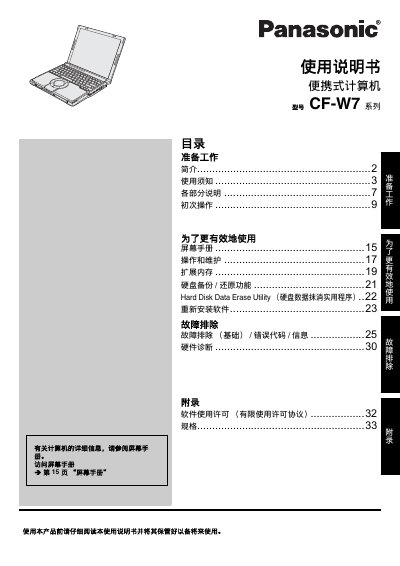

This is the user manual for the Panasonic computer CF-W7 series, which introduces the various parts of the computer and how to use, maintain, etc.
This manual covers preparation work, safety precautions, and initial operation of the CF‑W7 portable computer, including battery handling, power‑adapter use, and proper handling of accessories. It also describes each hardware component, such as the keyboard, touch‑pad, display, ports, and optional memory upgrades.
Later sections provide detailed specifications, wireless and Bluetooth configuration, power and battery information, and a comprehensive troubleshooting guide with error codes and hardware diagnostics. This manual is written in Chinese.
| CPU | Intel® Core™ 2 Duo U7500 1.06 GHz |
|---|---|
| Chipset | Mobile Intel® GM 965 Express |
| Memory | DDR2 SDRAM 1 GB (PC2‑4200, 200‑pin SO‑DIMM) |
| Hard Disk | 80 GB |
| Display | 12.1" XGA TFT, 1024×768 pixels |
| Wireless LAN | Intel® Wireless Wi‑Fi Link 4965AGN (IEEE 802.11a/b/g) |
| Bluetooth | Bluetooth 2.0 + EDR |
| Battery | Li‑ion 10.8 V, 5.8 Ah |
When the power adapter is connected, the battery automatically starts charging, provided the temperature is within the allowed range.
The computer supports DDR2 SDRAM SO‑DIMM modules, 200‑pin, 1.8 V, PC2‑4200, up to 2 GB total.
The device supports IEEE 802.11a/b/g Wi‑Fi and Bluetooth 2.0 + EDR.
