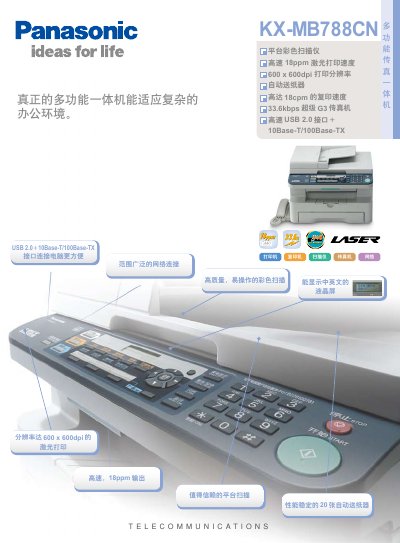

The Panasonic KX-MB788CN is a multi-function printer that has fax, copy, print, scan and network functions, which can meet the office's document processing needs.
The KX-MB788CN is a five‑in‑one office device that combines laser printing, copying, color scanning, fax and network connectivity. It supports high‑speed 18 ppm printing and copying, 600 × 600 dpi resolution, and a 250‑sheet paper tray with a 20‑sheet automatic document feeder.
The manual provides detailed specifications, power consumption data, supported operating systems, and step‑by‑step instructions for using the USB 2.0 and 10Base‑T/100Base‑TX network interfaces, as well as fax features such as 33.6 kbps modem speed and memory storage for up to 170 pages. This manual is written in Chinese.
| Print speed | 18 PPM |
|---|---|
| Print resolution | 600 × 600 dpi |
| Scan resolution (interpolated) | up to 9600 × 9600 dpi |
| Paper capacity | 250 sheets |
| Automatic document feeder capacity | 20 sheets |
| Memory capacity | 32 MB |
| Fax modem speed | 33.6 kbps |
| Fax memory storage | up to 170 pages |
| Power consumption (sleep) | ≈ 6.5 W |
| Maximum power consumption | ≈ 950 W |
| Power input | AC 220‑240 V, 50/60 Hz |
| Dimensions (W×D×H) | 420 × 445 × 305 mm |
| Weight | ≈ 13 kg |
| USB interface | USB 2.0 |
| Network interface | 10Base‑T/100Base‑TX |
The device prints at a speed of 18 pages per minute.
The fax memory can store up to 170 pages of received documents.
It supports a 10Base‑T/100Base‑TX Ethernet port for network printing and scanning.
The machine holds up to 250 sheets in the main tray and 20 sheets in the automatic document feeder.
