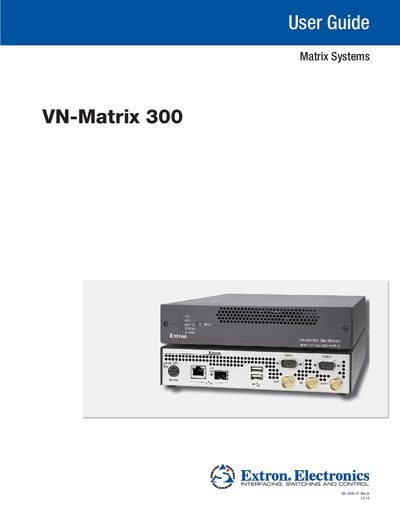

This document is the VN-Matrix 300 User Guide, which introduces the use method and precautions of the product.
This guide covers safety and warning information, installation steps, and basic configuration for the VN‑Matrix 300 video encoder/decoder. It explains power requirements, mounting, and environmental considerations before the device is powered on.
The manual also details system control via the integrated web management interface, network requirements, signal compatibility for video and audio, and advanced features such as remote RS‑232 control and SNMP monitoring. Technical specifications and troubleshooting information are provided in the final sections.
| Video Signal Type | SDI, HD‑SDI, 3G‑SDI digital video |
|---|---|
| Data Rates | 270 Mbps, 1.485 Gbps, 2.970 Gbps |
| Resolution Range | 525i, 625i, 720p, 1080i, 1080p, 1080psf |
| Audio Support | 24‑bit (SMPTE 299M) and 20‑bit (SMPTE 272M‑A) digital audio |
| Recommended Network Speed | Dedicated 1 Gbps Ethernet |
All servicing must be performed by qualified service personnel; there are no user‑serviceable parts inside the unit.
Remote control is possible via RS‑232 serial data on the COM2 port, allowing serial pass‑through between selected units.
The VN‑Matrix 300 achieves optimum performance on a dedicated 1 Gbps (Gigabit Ethernet) network.
