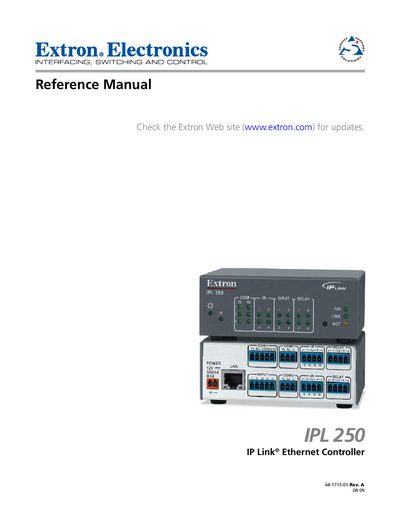

This manual describes the Extron IPL 250 IP Link® Ethernet Controller, covering safety warnings, hardware installation, mounting options, and power requirements. It also explains how to configure network communication, use the Global Configurator software, and program the device via SIS™ commands.
Key features include flexible device control (RS‑232, IR, relays), Ethernet networking with standard protocols, up to 200 simultaneous web sessions, and embedded web pages for diagnostics and monitoring. The document also provides firmware update procedures, troubleshooting tips, and reference specifications. This manual is written in Chinese.
| Data rate | 10/100Base‑T, half/full duplex with autodetect |
|---|---|
| Supported protocols | ARP, ICMP (ping), IP, TCP, UDP (port 3121, audio), DHCP, HTTP, SMTP, Telnet |
| Default IP address | 192.168.254.254 |
| Subnet mask | 255.255.0.0 |
| DHCP | off |
| Web server simultaneous sessions | Up to 200 |
| Flash memory | 7.25 MB non‑volatile user memory |
Read and retain all safety instructions, and refer all servicing to qualified service personnel because there are no user‑serviceable parts inside.
The IPL 250 can handle up to 200 simultaneous web sessions.
Yes, the 1U high, one‑quarter rack‑wide enclosure can be rack‑mounted, furniture‑mounted, or mounted to a projector‑mount pole.
