PCI8932 data acquisition card is a PCI bus data acquisition card, which can be directly inserted into any PCI slot in the IBM-PC/AT or compatible computer to form data acquisition, waveform analysis and processing systems in various fields such as laboratories and product quality testing centers.
The PCI8932 is a PCI‑bus data acquisition card designed for laboratory, quality‑control and industrial monitoring applications. It supports high‑speed, high‑precision analog and digital I/O, making it suitable for signal acquisition, process control and servo control.

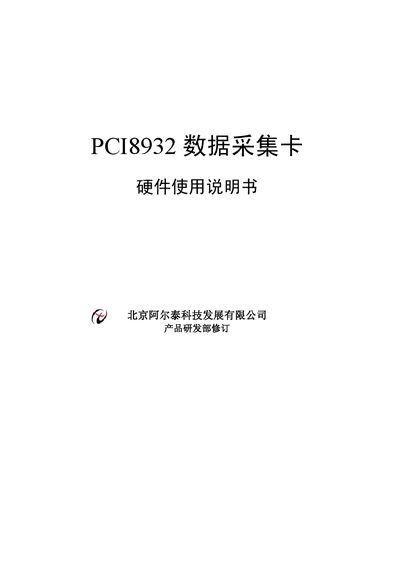

The manual provides a functional overview, detailed component layout, wiring diagrams, installation steps, calibration procedures for AD and DA channels, timing/counting features, mechanical dimensions, and warranty information. It also includes an appendix for connecting the optional PCI2319JD terminal board. This manual is written in Chinese.
| AD conversion accuracy | 13 bits |
|---|---|
| Maximum conversion frequency | ≈5 000 KS/s |
| Analog input channels | 16 single‑ended, 8 differential |
| Operating temperature range | -40 °C to +85 °C |
The card offers 16 single‑ended and 8 differential analog input channels.
Select an AD channel, connect it to 0 V, run the PCI8932 software and adjust the RP2 potentiometer until the reading is near zero.
