ART2000 data acquisition card is a PC104 bus compatible data acquisition card, which can be directly inserted into any bus expansion slot in a PC104 bus compatible computer. ART2000 board is designed with 12Bit resolution of A/D converter and D/A converter, providing 16 single-ended or 8 differential analog input channels and 4 D/A output channels.
The ART2000 is a PC104‑bus compatible data acquisition board that plugs into any PC104 expansion slot. It features a 12‑bit A/D converter, a 12‑bit D/A converter, 16 single‑ended or 8 differential analog input channels, and 4 analog output channels.

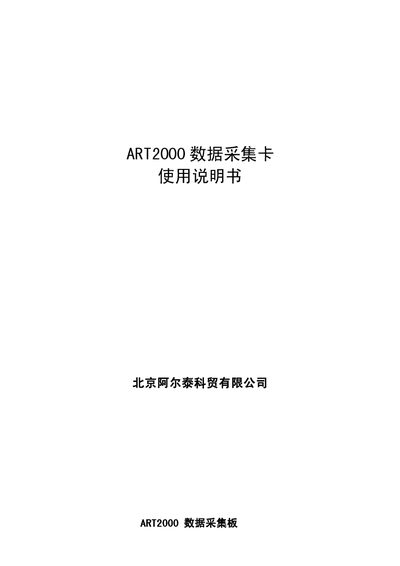

The manual provides hardware specifications, component layout, address configuration, pin assignments, calibration procedures, and programming examples, as well as warranty information. This manual is written in Chinese.
| Analog input channels | 16 single‑ended or 8 differential |
|---|---|
| Analog input voltage range | ±5 V, ±10 V, 0‑10 V, 0‑5 V |
| A/D resolution | 12 Bit (16384) |
| A/D non‑linearity error | ±1 LSB (max) |
| A/D conversion time | 1.0 µs |
| System measurement accuracy | 0.2 % |
| Analog output channels | 4 |
| Analog output voltage range | ±5 V, 0‑5 V, 0‑10 V, ±10 V |
| D/A resolution | 12 Bit (4096) |
| Output impedance | 0.289 Ω |
The base address is set with dip switch SW; bits 1‑6 correspond to address bits A4, A5, A6, A7, A8, A9.
The card supports ±5 V, ±10 V, 0‑10 V and 0‑5 V input ranges.
It provides 16 single‑ended or 8 differential analog input channels.
