The Glenair D280-019S Series 28 HiPer-D socket connectors offer crimp, rear‑releaseable contacts with IP67 sealing and up to 7.5 A current rating.
HiPer‑D socket connectors feature crimp, rear‑releaseable size #20 or #22D contacts that are intermateable with standard M24308‑type D‑Subminiature connectors. They have a rugged machined aluminum shell, waterproof sealing, and gold‑plated contacts that accept a range of AWG wire sizes.

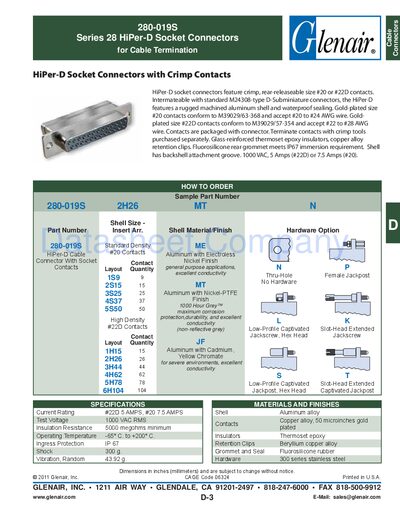

The datasheet lists electrical ratings (5 A for #22D, 7.5 A for #20), 1000 VAC test voltage, 5000 MΩ insulation resistance, operating temperature from –65 °C to +200 °C, and IP67 ingress protection. Dimensions, contact arrangements, and ordering part numbers are also provided.
| Current Rating | #22D 5 A, #20 7.5 A |
|---|---|
| Test Voltage | 1000 VAC RMS |
| Insulation Resistance | ≥ 5000 MΩ |
| Operating Temperature | -65 °C to +200 °C |
| Ingress Protection | IP67 |
| Shell Material | Aluminum alloy |
| Contact Plating | Copper alloy, 50 µin gold plated |
#22D contacts are rated at 5 A and #20 contacts at 7.5 A.
The connector meets an IP67 immersion requirement.
They operate from –65 °C up to +200 °C.
