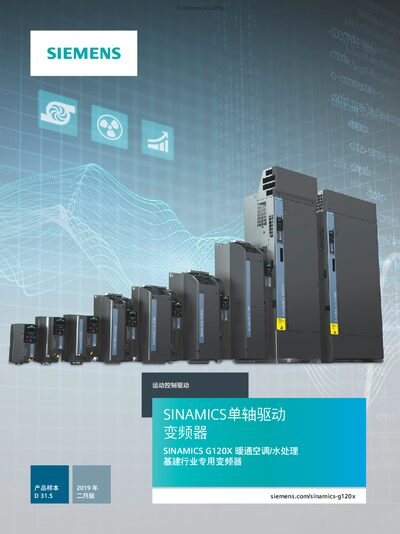

Siemens SINAMICS G120X Variable Frequency Drive Product Sample

Product sample for the SINAMICS G120X VFD covering HVAC, water treatment and construction applications.

Brand: Siemens
Document type: Product Leaflet
Language: Chinese
Pages: 108
File format: PDF
File size: 7.5 MB
Published: 28 September, 2026
Updated: 28 September, 2026
MD5 checksum: 12270CD59427190D94BDEFBF2CC7C2F1
PDF: Siemens SINAMICS G120X Variable Frequency Drive Product Sample PDF

About this manual

The SINAMICS G120X is a variable frequency drive designed for HVAC, water‑treatment and construction‑industry use. It offers a power range from 0.75 kW to 630 kW and integrates with Siemens’ TIA automation platform.

The document provides system overview, technical data, configuration‑tool information, sales and delivery conditions, and links to further online resources such as the SINAMICS product page and SIMARIS design tools. This manual is written in Chinese.

What's inside

System Overview
Technical Data
Configuration Tools
Sales & Delivery Conditions
Appendix
Other Information

Specifications

Power range	0.75 kW – 630 kW
Maximum motor cable length (shielded, 400 V)	up to 350 m with output reactor

Frequently asked questions

What is the power range of the SINAMICS G120X?

The drive covers a power range from 0.75 kW up to 630 kW.

Where can I find more information about the SINAMICS G120X?

More details are available at www.siemens.com/sinamics-g120x and the online Industry Mall.
