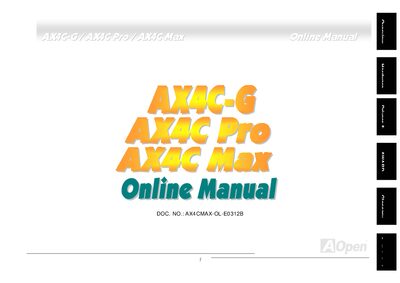

AOpen AX4C-G / AX4C Pro / AX4C Max Motherboard User Manual

The AOpen AX4C series motherboard user manual provides installation steps, hardware specs, BIOS setup, and troubleshooting guidance.

Brand: AOpen
Category: Board
Document type: User Manual
Language: English
Pages: 186
File format: PDF
File size: 6.3 MB
Published: 28 September, 2026
Updated: 28 September, 2026
MD5 checksum: 10D3A740038EF1E72D13B05F38843DD2
PDF: AOpen AX4C-G / AX4C Pro / AX4C Max Motherboard User Manual PDF

About this manual

This manual covers the AX4C-G, AX4C Pro, and AX4C Max motherboards. It includes detailed hardware installation instructions, connector descriptions, BIOS configuration, RAID options, and driver installation.

Additional sections provide a comparison of the three models, feature highlights, quick‑start procedures, troubleshooting tips, technical support contacts, and product registration information.

What's inside

What’s in this manual
Hardware Installation
CPU Installation
DIMM Sockets
Front Panel Connector
ATX Power Connector
BIOS Setup
RAID Introduction
Driver and Utility
Troubleshooting

Specifications

Supported CPUs	Intel Socket 478 Pentium 4 1.6 GHz–3.06 GHz
Chipset	Intel 875P (Canterwood)
USB ports	Eight USB 2.0 connectors
LAN	Gigabit or 10/100 Mbps (AX4C Pro, AX4C Max only)

Frequently asked questions

What CPUs are supported by the AX4C series motherboards?

They support Intel Socket 478 Pentium 4 processors ranging from 1.6 GHz to 3.06 GHz.

How many USB ports does the motherboard provide?

The board includes eight USB 2.0 connectors.

Does the AX4C Max model support Gigabit LAN?

Yes, the AX4C Max (and AX4C Pro) include Gigabit or 10/100 Mbps LAN on board.
