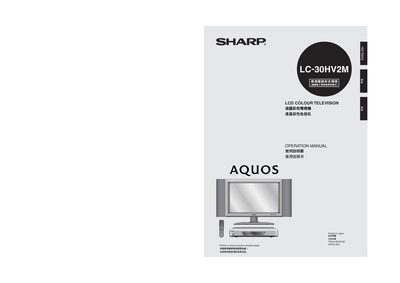

Sharp LC-30HV2M LCD Colour Television Operation Manual

About this manual

This manual guides Sharp LC-30HV2M LCD colour television owners through safe installation, system wiring, and basic operation. It includes safety notices, a list of supplied accessories, and step‑by‑step procedures for connecting antennas, power, headphones, and external devices such as DVD players and game consoles.

The document also covers remote‑control functions, battery replacement, picture and sound adjustments, child lock settings, and troubleshooting. Detailed diagrams of the front and rear panels, connector pin‑outs, and RS‑232C specifications help users and service technicians configure the TV correctly.

What's inside

• Safety Important Notice
• Random Accessories
• Preparation
• System Setup
• System Wiring Method
• Using the Remote Control
• Remote‑Control Precautions
• Battery Installation and Precautions
• Part Names
• Basic Connections and Antenna Setup

Specifications

Frequently asked questions

How do I install the batteries in the remote control?

Open the battery cover, insert two AA alkaline batteries with the correct polarity as marked, and close the cover.

What safety precautions should I follow when cleaning the TV?

Unplug the power cord, use a dry cloth to wipe the TV, and avoid liquid cleaners or spraying liquids on the screen.

How can I reset the TV to its factory settings?

While the TV is in standby, press and hold the CLEAR button on the AVC system, then turn the power on; all settings (except channel numbers) will revert to factory defaults.
