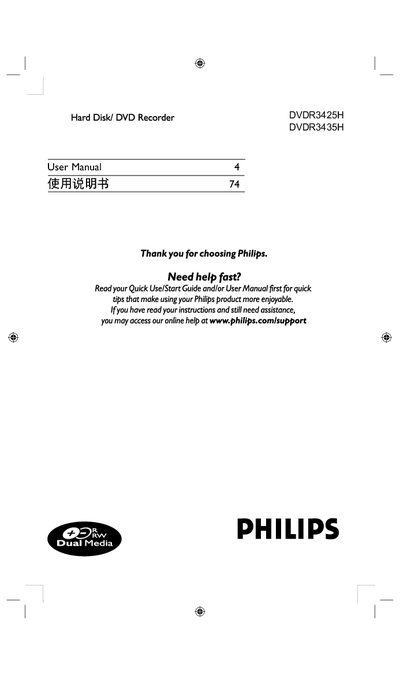

This manual introduces the use and precautions of DVDR3425H/DVDR3435H
This manual covers the special features of the Philips DVDR3425H and DVDR3435H DVD recorders, including Time Shift Buffer, Instant Replay, and direct DVD recording. It guides you through installation, connection of antennas, video/audio cables, optional devices, and basic setup of TV channels and language settings.
Detailed sections explain how to record from various sources, use timer recording, edit recordings on both the hard‑disk and recordable DVDs, and perform firmware upgrades. Safety, cleaning, and HDD handling instructions are provided, along with a glossary of technical terms.
| Laser type | Semiconductor |
|---|---|
| DVD laser wavelength | 658 nm |
| CD laser wavelength | 790 nm |
| Output power (DVD+RW write) | 30 mW |
| Output power (DVD read) | 1.0 mW |
| Output power (CD read) | 1.0 mW |
| Beam divergence (DVD) | 84 degrees |
| Beam divergence (CD) | 61 degrees |
A DVD‑R disc holds 4.7 GB, which is about one hour of recordings at the highest quality and about eight hours at the lowest quality.
Use a micro‑fibre cleaning cloth and wipe the disc from the centre to the edge in a straight line.
Press the PAUSE button to pause live TV; press PAUSE II to resume playback.
