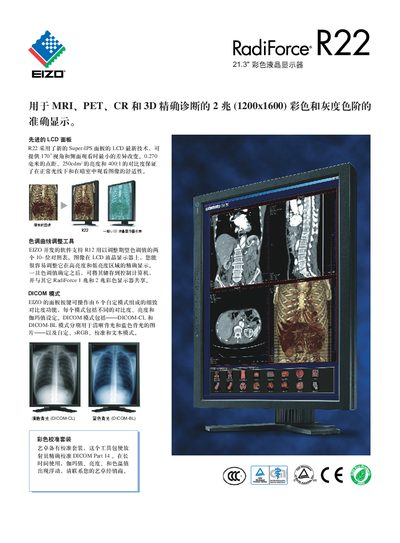

This document introduces a 2-megapixel color and grayscale display for MRI, PET, CR, and 3D accurate diagnosis. The display features DICOM modes and a tone curve adjustment tool for accurate and precise display. Additionally, the display comes with a color calibration kit and utilizes advanced LCD panel technology.
This manual describes the features of the RadiForce‑R22 21.3" color LCD monitor, including its SuperIPS panel with 0.270 mm pixel pitch, 170° viewing angles, 250 cd/m² brightness, and 400:1 contrast. It explains the DICOM‑CL and DICOM‑BL modes, custom, sRGB, calibration and text modes, and how to use the supplied calibration kit for precise gamma and color adjustments.
Technical specifications such as resolution (1200×1600), power consumption (max 15 W), interface options (PCI 32‑bit/64‑bit, D‑Sub, USB, DVI‑I), and regulatory certifications are listed. Installation guidance covers mounting, tilt/rotation adjustments, and connection of cables and utility software for monitor control. This manual is written in Chinese.
| Screen size | 21.3 inches |
|---|---|
| Resolution | 1200 × 1600 (2 MP) |
| Pixel pitch | 0.270 mm |
| Brightness | 250 cd/m² |
| Contrast ratio | 400:1 |
| Maximum power consumption | 15 W |
| Power input | 100‑120 V / 200‑240 V, 50/60 Hz |
| USB ports | 1 upstream, 2 downstream |
| DVI‑I outputs | 2 |
| Weight (including base) | 7.0 kg |
