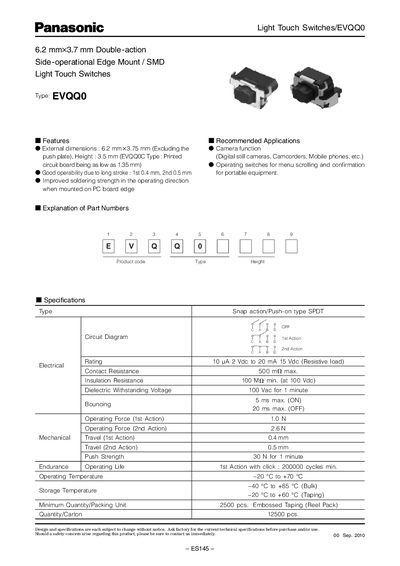

EVQQ0 Light Touch Switches Product Specification
The Panasonic EVQQ0 Light Touch Switch is a double‑action, side‑operational edge‑mount SMD switch designed for camera functions, menu scrolling and other portable equipment. It offers a long stroke (0.4 mm first action, 0.6 mm second) and improved soldering strength when mounted on a PCB edge.
The datasheet provides detailed mechanical dimensions, electrical ratings, temperature limits, mounting patterns, and recommended reflow soldering conditions, along with part numbers and endurance specifications for reliable integration into electronic assemblies.
| External dimensions (excluding push plate) | 6.2 mm × 3.75 mm |
|---|---|
| Height | 3.5 mm (1.35 mm PCB low profile) |
| Electrical rating | 10 mA 2 Vdc to 20 mA 15 Vdc (Resistive load) |
| Contact resistance | ≤ 500 mΩ |
| Insulation resistance | ≥ 100 MΩ @ 100 Vdc |
| Dielectric withstanding voltage | 100 Vac for 1 min |
| Bouncing time | ON ≤ 5 ms, OFF ≤ 20 ms |
| Operating force (1st action) | 1.0 N |
| Operating force (2nd action) | 2.6 N |
| Mechanical travel (1st action) | 0.4 mm |
| Travel (2nd action) | 0.5 mm |
| Push strength | 30 N for 1 min |
| Operating temperature range | -20 °C to +70 °C |
| Storage temperature (bulk) | -40 °C to +85 °C |
The switch measures 6.2 mm × 3.75 mm (excluding the push plate) with a height of 3.5 mm.
It is rated for 10 mA at 2 Vdc up to 20 mA at 15 Vdc for resistive loads.
The switch operates from –20 °C to +70 °C.
