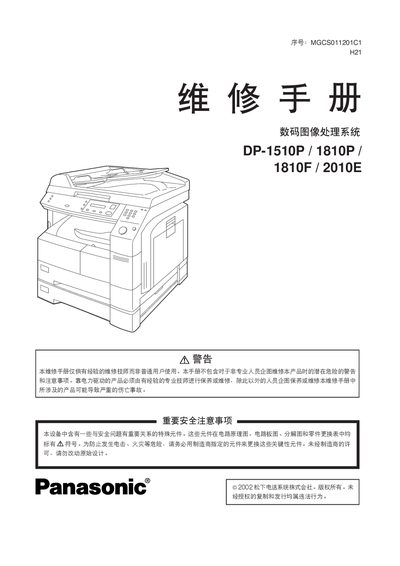

This maintenance manual is a repair guide for Panasonic digital image processing systems. It warns that only experienced technicians should use it. The manual includes system configuration and a list of optional accessories.
This service manual provides detailed instructions for experienced technicians to maintain and repair the Panasonic DP‑1510P, DP‑1810P, DP‑1810F and DP‑2010E digital image processing systems. It includes safety warnings, required tools, and emphasizes the use of manufacturer‑specified components to avoid hazards.
The document covers system configuration, optional parts and supplies, regular maintenance tasks, detailed part numbers, and step‑by‑step procedures for component replacement such as the OPC photoconductor drum. Tables list tools, part numbers, and maintenance checklists for each subsystem. This manual is written in Chinese.
| Ethernet Interface | 10/100 |
|---|---|
| Parallel Port Interface | PDL PCB |
| PCL6 Emulation Component | DA‑PC210 |
| OPC Photoconductor Drum Part Number | DASM08B (8 MB), DASM16B (16 MB), DASM64B (64 MB), DASM28B (128 MB) |
The manual is intended only for experienced service technicians, not for ordinary users.
Only manufacturer‑specified components may be used, and any modifications without the manufacturer's permission are prohibited.
