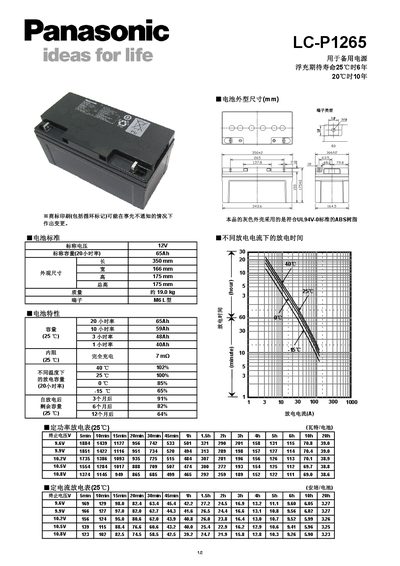

LC-P1265 is a 12V65Ah lead-acid battery produced by Panasonic. The battery has a float service life of 6 years and a 10-year service life at 20℃. The maximum discharge current of the battery is 65A and the minimum discharge current is 3.25A. The battery terminal type is M6 1/2, the external dimensions are 350mm*166mm*175mm, and the weight is 19.0kg.
This manual describes the technical specifications of the Panasonic LC‑P1265 rechargeable battery, including its nominal voltage, capacity at various discharge rates, and physical dimensions. It also outlines the recommended charging procedures and the corresponding current limits.
Safety information is provided, warning users of risks such as fire, explosion, and personal injury if the battery is mishandled. Contact details for Panasonic Battery Co., Ltd. and a reference to the online support page are included. This manual is written in Chinese.
| Capacity (20 h rate) | 65 Ah |
|---|---|
| Capacity (10 h rate) | 59 Ah |
| Capacity (3 h rate) | 48 Ah |
| Capacity (1 h rate) | 40 Ah |
At a 20‑hour discharge rate the capacity is 65 Ah.
The manual warns that improper use can cause fire, explosion, or personal injury.
