ASRock H61DEL Motherboard is an ATX form factor motherboard that supports the second generation Intel Core i7/i5/i3 processors. It is equipped with the Intel H61 chipset and supports dual-channel DDR3 memory. It has 2 DDR3 DIMM slots and supports DDR3 1333/1066 non-ECC, un-buffered memory. It supports a maximum of 16GB of system memory. The on-board graphics card is Intel HD Graphics 2000/3000, which supports HDMI and D-Sub interfaces. It supports HDMI 1.4a, with a maximum resolution of 1920x1200 @ 60Hz.

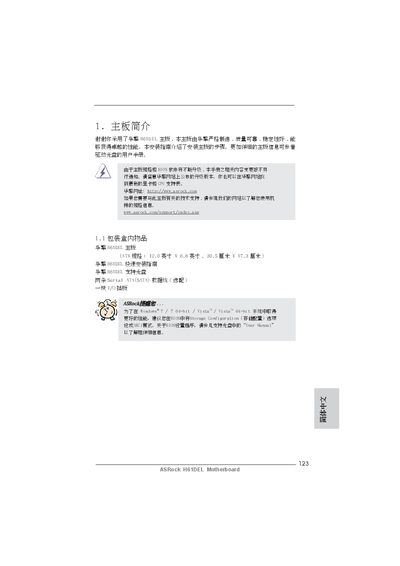

This guide introduces the ASRock H61DEL ATX motherboard, its packaging contents, and provides step‑by‑step instructions for installing the board, connecting cables, and configuring BIOS settings. It also points to the support CD for detailed driver and utility information.
The document lists the board’s key specifications, supported CPUs, memory types, expansion slots, integrated graphics, audio, networking, and power connectors, as well as safety warnings and environmental compliance details. This manual is written in Chinese.
| Form factor | ATX (12.0" x 6.8") |
|---|---|
| CPU socket | LGA1155 |
| Chipset | Intel H61 |
| Supported CPUs | 2nd‑gen Intel Core i7/i5/i3 (LGA1155) |
| Memory slots | 2 DDR3 DIMM slots |
| Maximum memory | 16 GB DDR3 |
| Integrated graphics | Intel HD Graphics 2000/3000 |
| Audio codec | VIA VT1705 (5.1 channel) |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| SATA ports | 4 × SATA2 (3 Gb/s) with AHCI and hot‑plug support |
| BIOS | 32 Mb AMI BIOS with UEFI GUI |
Set the Storage Configuration option in the BIOS to AHCI mode for best performance under Windows 7/7 64‑bit.
Supported OSes include Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
