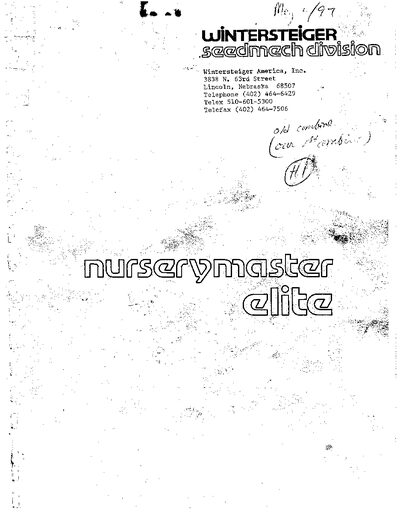

This is an operator manual that mainly introduces the operation mode of Wintersteiger NURSERYMASTER ELITE in all its details, and enables the operator to correctly operate (handle) and adjust this powerful and versatile plot combine.
This operator's manual is intended for the driver of the Wintersteiger NURSERYMASTER ELITE plot combine. It explains safe operating procedures, required safety equipment, and the steps to start, position, and control the machine during harvesting and threshing operations.
The manual includes technical data, detailed descriptions of the cutter bar, threshing unit, hydraulic and motor systems, as well as comprehensive maintenance, lubrication, and winter‑sheltering instructions. Reference tables and diagrams help adjust the machine for optimal performance.
| Cutter bar width | 125 cm / 150 cm |
|---|---|
| Gasoline motor type | VW‑gasoline type 122, air cooled |
| Diesel motor type | VW‑Diesel type 068.5, water cooled |
| Battery voltage | 12 V |
| Cooling water temperature range | 80 °C to 95 °C |
Before starting the engine, ensure no persons are in the immediate area around the combine and check the cutter bar, grain tank, shaker, and strainer for loose parts.
The combine is equipped with a 12 V battery.
