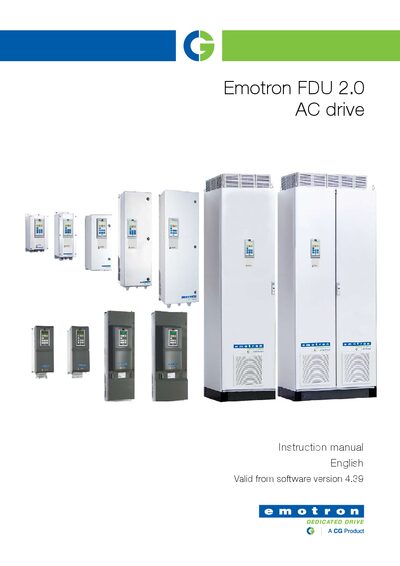

CG Drives & Automation FDU 2.0 AC Drive Instruction Manual

This manual describes the operation of the Emotron FDU 2.0 AC drive

Document type: User Manual
Language: English
Pages: 250
File format: PDF
File size: 6.4 MB
Published: 18 October, 2023
Updated: 18 October, 2023
MD5 checksum: 57666F3F7B4824303EF411B0D62088A4
PDF: CG Drives & Automation FDU 2.0 AC Drive Instruction Manual PDF

About this manual

This instruction manual covers safety instructions, mounting, installation, and cable specifications for the FDU 2.0 AC drive. It details the required precautions, earthing, RCD compatibility, and wiring diagrams for mains and motor connections.

Further sections describe control connections, getting started procedures, application examples, main features, operation via the control panel, serial communication, functional description, troubleshooting, options, and technical data such as electrical specifications and dimensions.

What's inside

Safety Instructions
Mounting
Installation
Cable specifications
Control Connections
Getting Started
Main Features
Operation via the Control Panel
Serial communication
Technical Data

Specifications

Main voltage range	230 - 480 V
Normal duty output current	120% of rated current
Power at 230 V (kW) – model FDU48-025-20	30 kW
Power at 460 V (kW) – model FDU48-025-20	11 kW

Frequently asked questions

How long must you wait after switching off the mains before opening the AC drive?

You should wait at least 7 minutes before opening the drive.

What safety step is required before working on a connected motor?

The mains voltage must be disconnected from the AC drive before any work on the motor.
