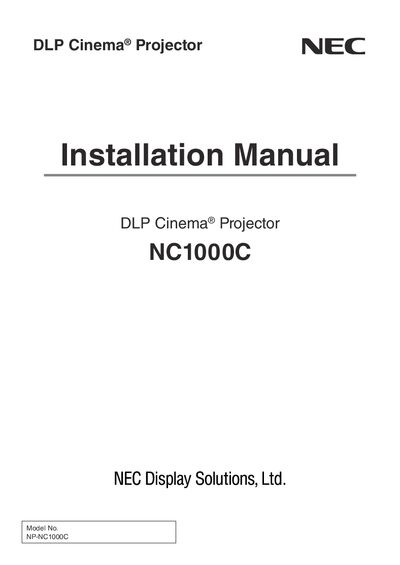

This is a maintenance and installation manual for NEC DLP Cinema® Projector NC1000C
This manual describes the procedures to install, adjust, and maintain the NEC NC1000C DLP Cinema projector and its peripheral devices. It includes safety warnings, handling instructions, and regulatory compliance information that must be read before any installation work.
The guide covers site preparation, ceiling mounting requirements, power‑supply connections, lamp replacement, high‑altitude operation, and disposal of the unit. Contact information for regional support centers is also provided.
| Power supply (low voltage) | AC100‑130V 12.2‑9.0 A 50/60 Hz Single‑phase |
|---|---|
| Power supply (high voltage) | AC200‑240V 5.8‑4.8 A 50/60 Hz Single‑phase |
| Maximum ceiling support weight | 50 kg (projector 44 kg, lens 3 kg, IMS 3 kg) |
| Maximum sound pressure level | < 70 dB(A) |
The manual states that users must read the manual carefully before using the NC1000C and keep it for future reference.
The power cable stopper supplied with the projector must be used, and all prongs must be fully inserted into the AC IN terminal before fixing the cable.
The ceiling must be able to support a total weight of 50 kg, which includes the projector, lens, and IMS.
The highest sound pressure level is specified as less than 70 dB(A).
