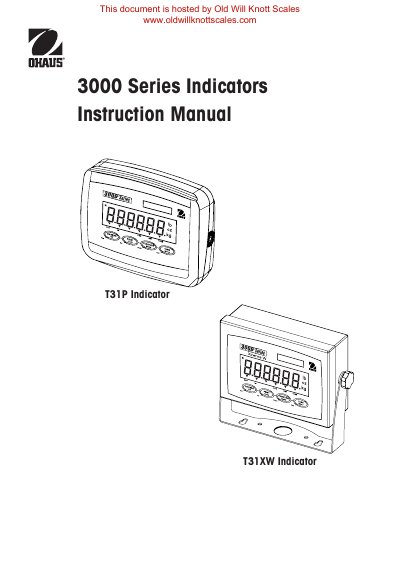

Ohaus T31P/T31XW 3000 Series Indicators Instruction Manual

This document is the instruction manual of 3000 series indicators

Brand: OHAUS
Category: Other
Document type: User Manual
Language: English
Pages: 44
File format: PDF
File size: 1.1 MB
Published: 16 October, 2023
Updated: 16 October, 2023
Models: T31XW, T31P
MD5 checksum: 230E7E03354B1CE6EDE1FF9E6C2D9045
PDF: Ohaus T31P/T31XW 3000 Series Indicators Instruction Manual PDF

About this manual

This manual provides installation, operation, and maintenance instructions for the Ohaus T31P and T31XW indicators. It details safety precautions, unpacking, external and internal connections, and mounting procedures for both models. The guide explains how to navigate the menu structure for calibration, setup, readout, and mode configurations, as well as how to perform weighing and parts counting operations.

What's inside

Safety Precautions
Overview of Parts and Controls
Installation
Settings
Operation
Serial Communication
Legal for Trade
Maintenance
Technical Data
Accessories and Options

Specifications

Capacity Range	5 to 20000 kg or lb
Display	6-digit, 7-segment backlit LCD
Operating Temperature	-10°C to 40°C
Power (T31P)	9 - 12VDC, 0.5A
Power (T31XW)	100-240 VAC / 50-60 Hz
Ingress Protection	IP66

Frequently asked questions

What are the models covered in this manual?

The manual covers the T31P and T31XW indicators.

Can the T31P be powered by a battery?

Yes, the T31P includes an AC Adapter with an internal rechargeable Sealed Lead-Acid Battery.

What is the maximum capacity of the indicators?

The maximum capacity range is 5 to 20000 kg or lb.
