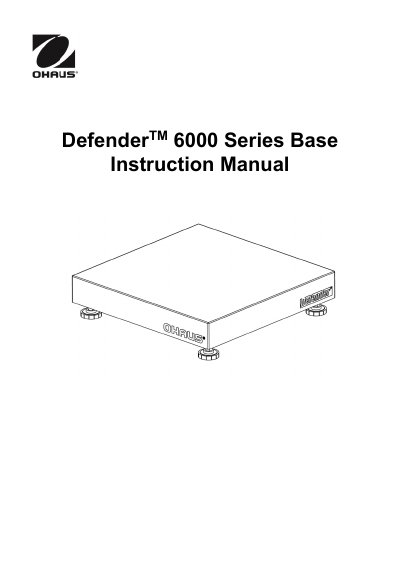

This manual provides installation and maintenance instructions for the OHAUS Defender TM Series Base.
The document serves as an instruction manual for the OHAUS Defender Series Base, a component used in weighing scales. It details the unboxing process, which includes the base, weighing pan, and optional indicator or column assembly depending on the purchase configuration.
Key operational sections cover the assembly of the weighing pan by removing shipping spacers and securing it to the top frame. The manual provides specific wiring connection codes for different models (Type 1 and Type 2) to connect the load cell cable to an OHAUS indicator, noting restrictions on using extension cables in legal-for-trade applications.
| Operating temperature | -10º C to +40 º C (14 ° F to 104 ° F) |
|---|---|
| Relative humidity | 10% to 90% relative humidity, non-condensing |
| Altitude limit | Up to 2,000m |
| Load Cell Type | 350 Ohm, SST, single point |
| Load Cell Excitation | 3.3-15V DC/AC |
The package includes the Defender Series Base, Weighing Pan, and Instruction Manual.
No, the extension cable accessory cannot be used if the scale will be used in a legal for trade application because there is no provision to seal the connection.
Use a damp cloth with water and mild detergent; do not use acids, alkalis, strong solvents, or abrasive materials.
