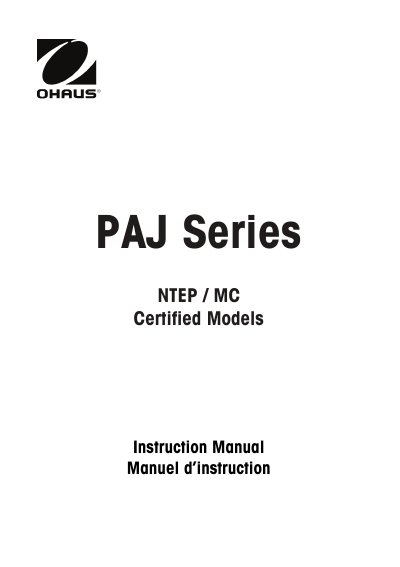

Instruction manual for PAJ Series NTEP/MC Certified Models
The document serves as the instruction manual for the OHAUS PAJ-N Series of balances, which are available in Gold Models and Carat Models. It covers essential safety precautions, control button functions, and detailed installation steps including component assembly and leveling procedures.
The guide details various operational modes such as Weighing, Count, and Percentage, along with specific features like APW Optimization and the Weigh Below function. It also explains how to navigate the menu system for calibration (InCal or Span), setup configurations, unit selection, data printing options, RS232 communication settings, and legal-for-trade verification procedures.
The RS232 baud rate can be set to 600, 1200, 2400, 4800, 9600 and 19200.
Span Calibration uses two weight values: zero and a weight between 50% and 100% of the capacity of the balance.
