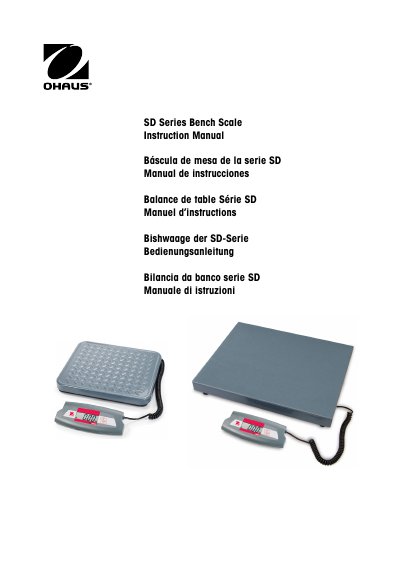

Ohaus SD series bench scale instruction manual, which introduces how to operate the scale
The Ohaus SD Series Bench Scale is designed for weighing applications requiring high accuracy. The scale features a large 7-segment numeric display that shows weight values up to four digits, including negative signs and decimal places. It supports both simple and dynamic weighing modes and can be powered by an included AC adapter or three 'C' size alkaline batteries.
| Weighing Units | kg, lb |
|---|---|
| Modes | Simple Weighing, Dynamic Weighing |
| Stabilization time | Within 3 seconds |
| Maximum Overload | 150% |
| Battery Operating Time | 360 hours |
| Operating Temperature Range | 5oC/41oF to 40oC/104oF |
| Display Type | 4 Digit, LCD, 0.8" high |
The scale requires three 'C' size (LR14) alkaline batteries.
The scale automatically turns off after approximately four minutes of inactivity during battery operation.
An 'E' is displayed on the screen. The user must remove the load for the scale to return to normal operation.
No, calibration is unavailable when the scale is in Dynamic Weighing Mode.
