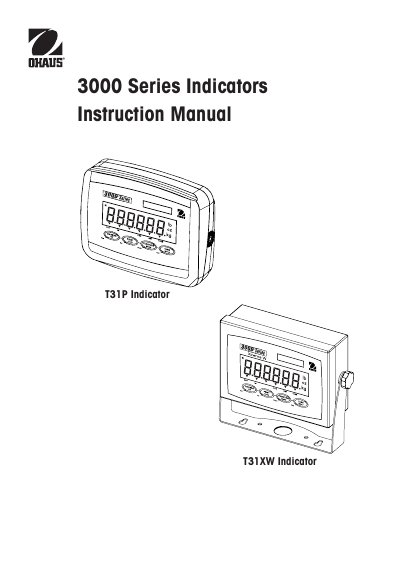

This manual introduces the use of the 3000 series indicators.
This instruction manual provides comprehensive guidance for the Ohaus 3000 Series Indicators, specifically models T31XW and T31P. It covers safety precautions, an overview of parts and controls, and detailed installation procedures including unpacking, external connections, and mounting options for both models. The guide also explains internal connections and specific rear cover orientations.
| Ambient Temperature | -10°C to 40°C / 14°F to 104°F |
|---|---|
| Relative Humidity | Maximum 80% up to 31°C |
| Capacity Range | 5 to 20000 kg or lb |
| Display Resolution | 1:20,000 |
| Display Type | 6-digit, 7-segment backlit LCD |
| Ingress Protection | IP66 |
| Load Cell Excitation Voltage | 5V DC |
| Power Supply (T31P) | 9 - 12VDC, 0.5A, AC Adapter with Battery |
| Power Supply (T31XW) | 100-240 VAC / 50-60 Hz |
This manual covers the T31P and T31XW Indicators.
The capacity range is 5 to 20000 kg or lb.
Yes, the T31XW is supplied with a grounded power cable and should be used with a compatible grounded power outlet.
