This manual provides detailed instructions on how to use the 1600 series balance, including unpacking, setting up, and using.

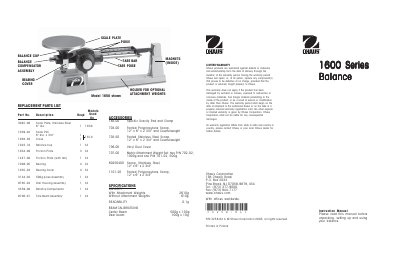

This document is the instruction manual for the Ohaus 1600 Series balance. It provides guidance on unpacking the device, setting it up on a level surface, and performing zeroing adjustments using the balance compensator. The manual details the weighing process involving sliding poises and a dial for readings up to 0.1g.
| Capacity (with Attachment Weights) | 2610g |
|---|---|
| Capacity (without Attachment Weights) | 610g |
| Readability | 0.1g |
| Tare Poise Capacity | 225 grams |
Adjust the Balance Compensator (knurled knob) located at the left end of the beam to obtain exact zero balance.
The weight is the sum of the values of the Poise positions read from the Graduated Beams and the position of the Dial.
Specific Gravity equals Weight in air divided by (Weight in air minus weight in water).
