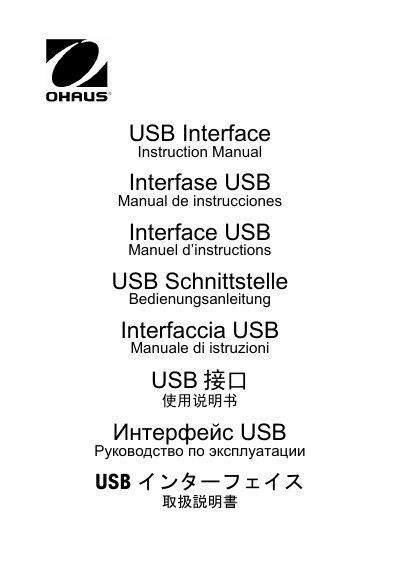

Ohaus USB Interface Instruction Manual

This file is an Ohaus USB interface manual, which introduces the function features and usage methods of the product.

Brand: OHAUS
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 63
File format: PDF
File size: 1020 KB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: 6979CD83037978EBFAB2D4FC8ADB4980
PDF: Ohaus USB Interface Instruction Manual PDF

About this manual

The Ohaus USB Interface Kit allows balances to connect to a computer using a Universal Serial Bus (USB) connection. It acts as a generic interface based on the RS232 serial standard, directing data to a virtual port that appears as an RS232 port to application programs. The kit includes an interface module and a CD with software drivers to create the required virtual port.

What's inside

Introduction
System Requirements
Interface Installation
USB Connection
Virtual Port Software Installation
Balance Setup
Operation
USB Output
USB Input
Compliance

Specifications

Compatible Products	Scout Pro, Traveler, Navigator
System Requirements	Windows 98, 98SE, ME, 2000, XP, 7
USB Connector Type	4-pin, male, USB Type A
Default Baud Rate	2400 baud

Frequently asked questions

What products is the USB Interface Kit compatible with?

The kit is designed for use with Ohaus Scout Pro, Traveler, and Navigator products.

How do I install the interface module?

Slide the blank cover to the rear, remove the cover, install the module, and slide the module forward.

What are the default communication settings?

The interface is preset to 2400 baud, 7 bit, no parity, and no handshake.
