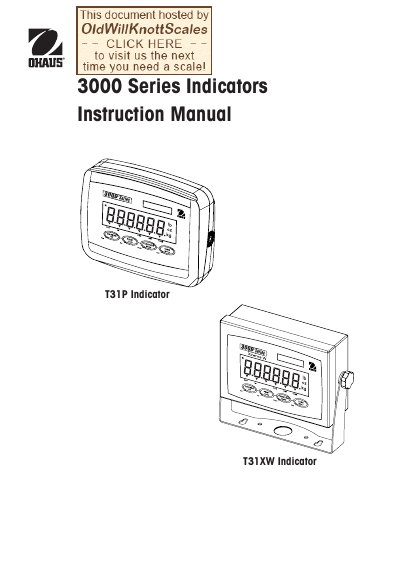

Ohaus T31XW and T31P Indicator Instruction Manual

This is the instruction manual of Ohaus T31XW indicator and T31P indicator.

Brand: OHAUS
Document type: User Manual
Language: English
Pages: 44
File format: PDF
File size: 882 KB
Published: 16 October, 2023
Updated: 16 October, 2023
MD5 checksum: 4D2CF492BB7124B6799FDC8523C8F6AC
PDF: Ohaus T31XW and T31P Indicator Instruction Manual PDF

About this manual

The document serves as an instruction manual for the Ohaus 3000 Series Indicators, specifically models T31P and T31XW. It covers safety precautions, installation procedures including unpacking and mounting, and detailed setup instructions for various menus such as calibration, unit selection, and readout settings.

What's inside

Introduction
Safety Precautions
Overview of Parts and Controls
Installation
Settings
Operation
Serial Communication
Maintenance
Technical Data
Warranty

Specifications

Capacity Range	5 to 20000 kg or lb
Display Type	6-digit, 7-segment backlit LCD
Operating Temperature	-10°C to 40°C / 14°F to 104°F
Power Supply (T31P)	9-12VDC, AC Adapter with Internal rechargeable battery
Power Supply (T31XW)	100-240 VAC / 50-60 Hz
Ingress Protection	IP66

Frequently asked questions

What are the models covered in this manual?

The manual covers the T31P and T31XW indicators.

What is the maximum capacity of these indicators?

The maximum displayed resolution supports a range up to 20,000 kg or lb.

Is the equipment suitable for hazardous environments?

No, users should not operate the equipment in hazardous or unstable environments.
