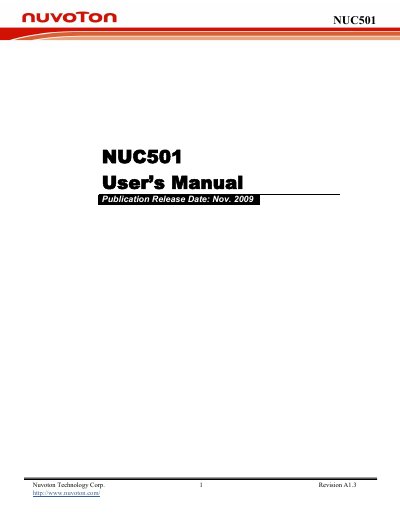

This document introduces the overview, features, pad, system diagram and functional description of NUC501
The NUC501 is an ARM7TDMI-based microcontroller designed for low-cost and high-performance applications such as interactive toys, edutainment robots, and home appliances. It integrates a 32-bit RISC CPU with 32KB high-speed SRAM, a crypto engine, boot ROM, LDO regulator, ADC, DAC, I2C, SPI, USB 2.0 FS Device, and GPIO into a single cost-affordable package. The architecture allows booting from SpiMemory or USB, reducing system complexity and BOM cost by eliminating the need for external SDRAM.
| CPU Core | ARM7TDMI |
|---|---|
| Clock Speed | 108 MHz |
| Internal SRAM | 32 KB |
| Internal ROM | 6 KB |
| Power Supply Voltage | 3.3V |
| Analog Input Voltage Range | 0 ~ 3.3 volts |
| ADC Resolution | 10-bit x 8-ch |
| ADC Maximum Conversion Rate | 400K samples per second |
| Package Types | LQFP-48 / LQFP-64 |
The ARM7TDMI core runs up to 108MHz on the high-speed SRAM.
No, the NUC501 operates without the use of SDRAM.
The NUC501 is available in LQFP-48 and LQFP-64 packages.
