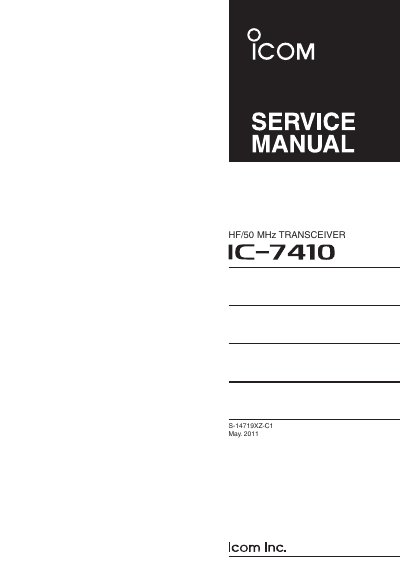

This is a manual about IC-7410 HF/50 MHz TRANSCEIVER
This document serves as a technical guide for servicing the Icom IC-7410 HF/50 MHz Transceiver. It provides essential safety precautions regarding power connections and signal limits to prevent damage to the equipment.
The manual details the internal architecture of the transceiver, including receiver and transmitter circuits, frequency synthesizers, and voltage diagrams. It also outlines specific adjustment procedures for frequency, transmit, and receive functions.
| Sensitivity (SSB/CW) | 0.16 pV |
|---|---|
| Sensitivity (FM) | 0.5 pV |
| Output power (SSB/CW/RTTY/FM) | 2 to 100 W |
| Output power (AM) | 2 to 27 W |
| Dimensions | 315(W) x 116(H) x 343(D) mm |
| Weight (approx.) | 10.2 kg; 22.4 lb |
Do not apply an RF signal of more than 20 dBm (100 mW) to the antenna connector, as this could damage the front-end.
The usable temperature range is from 0°C to +50°C (+32°F to +122°F).
